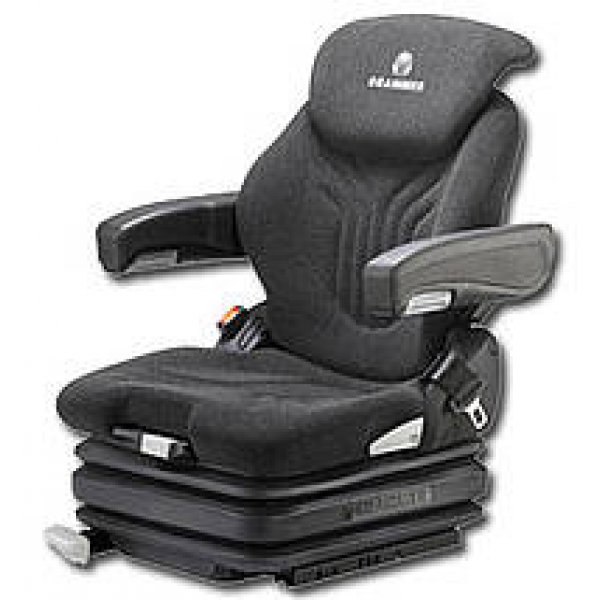

XL Electric forklift seat suitable for up to 170kg.

Suits:
  • Forklifts
  • Bob Cats
  • Skid Steers
Standard configuration:
  • Quick and easy rapid intuitive weight adjustment with visual indicator from 45-170kgs (370 pounds)
  • Suspension travel = 80mm
  • Fore/aft adjustment = 210mm
  • Narrow seat cushion = 470mm
  • Adjustable backrest angle from -5 degrees to 30 degrees, in 2.5 degree steps
  • Asymmetrical shape of the backrest makes driving backwards more comfortable
  • Mechanical lumbar support
  • Three different slide rail mounting patterns 11.25",12.63" & 12.913" (285.8, 320.7 & 328 MM)


Please note: armrests, headrests, and seat belts are optional extras. Quotation provided upon request.

Specification

Yes No Subscribe to newsletter

File Type File Description
Grammer MSG75 Primo Electric BrochureQuick and easy rapid intuitive weight adjustment with visual indicator from 45-170kgs (370 pounds) Suspension travel = 80mm Fore/aft adjustment = 210mm Narrow seat cushion = 470mm Mechanical lumbar support
