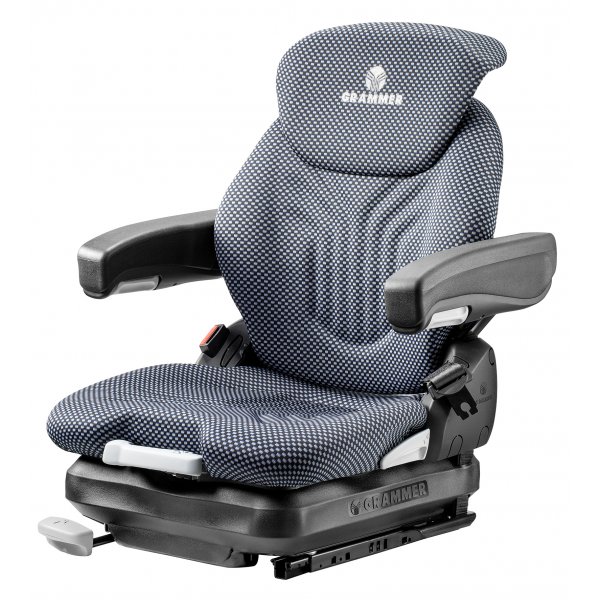

The mid backrest mechanical suspension seat features a standard 170 kg occupant rating, making it suitable for a range of heavy-duty applications. This seat is designed for use in:
  • Forklifts
  • Bobcats
  • Skid Steers

Please note that armrests, headrests, and seat belts are available as optional extras. For pricing and additional details, a quotation can be provided upon request.

Standard Configuration:
  • Quick and Easy Rapid Weight Adjustment: Allows for intuitive adjustment between 45 kg and 170 kg (370 pounds), with a visual indicator for precise settings.
  • Suspension Travel: Provides 80 mm of travel to absorb shocks and enhance comfort.
  • Fore/Aft Adjustment: Offers 210 mm of adjustment to find the ideal seating position.
  • Narrow Seat Cushion: Measures 470 mm, designed to accommodate a variety of user needs.
  • Adjustable Backrest Angle: Adjustable from -5 degrees to 30 degrees in 2.5-degree increments for customized back support.
  • Asymmetrical Backrest Shape: Enhances comfort when driving in reverse.
  • Mechanical Lumbar Support: Provides additional lower back support.
  • Seat Switch: Facilitates easy operation.
  • Mounting Bracket: Included for right-hand control arm equipped forklifts.

This seat combines comfort, adjustability, and durability to meet the demands of various operational environments.


Specification

Yes No Subscribe to newsletter

File Type File Description
Grammer Primo XM DatasheetTechnical information and Measure details
Grammer Primo XM MSG65 Mechanical BrochureQuick and easy, rapid and intuitive weight adjustment with visual indicator from 45-170kgs Suspension travel =80mm Fore/aft adjustment = 210mm Narrow seat cushion = 470mm
